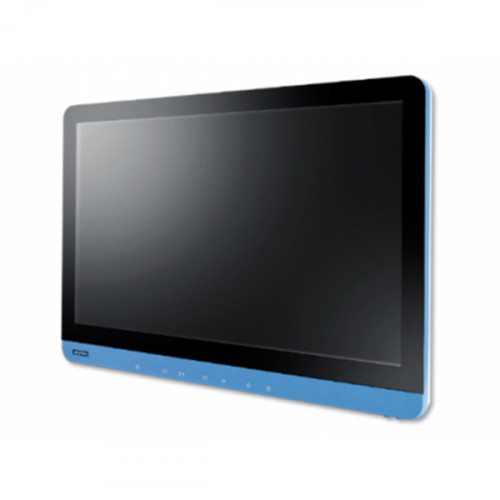

Medical panel PC POC621 with internal power supply - CORE i5 - without RAM and SSD

0 / Write a review

Waterproof, rugged, touch-sensitive, and disinfectable, the POC621 panel PC is equipped with an 11th generation processor and an NVME SSD up to 7 times faster for more comfortable access to applications or radiological images.

The POC621 is suitable for demanding environments such as operating rooms.

Integrated power supply unit in the panel PC
Fanless design
Dust and liquid splash resistance: IP65 front and IP54 rear
Capacitive touch screen usable with gloves
Image zoom and rotation capabilities
Flat, seamless design for total and quick disinfection
Compliant with EN60601-1-2 standard
Rich and protected connectivity
Full HD resolution, 1920 x 1080
Available with Intel Core i5 processor
NVME SSD
Warranty: 3 years with an extension to 4 or 5 years

Product Code: PANEL

Brand Advantech

On command - dispatch 2 to 3 weeks

2,960.00€
Icl Tax: 3,552.00€

Qty

Reference

72.POC.621.02B110.CA

Indicative shipping time

On command - dispatch 2 to 3 weeks

Outer dimensions

524 x 357 x H62 mm

Screen size

21.5’’ Wide TFT color LCD 16:9

Resolution

1920 x 1080

CPU

Intel® Core™ i5-1145G7E (8M cache, up to 4.10 GHz)

Memory type

8GB DDR4 (supports up to 64GB DDR4 SODIMM)

Operating system

Windows 10 IoT Ent (64-bit only)

Storage system

Expansion slot

1x Mini PCIe / 1x M.2 2230 / 4x PCIe

Number of USB 2.0 ports

Number of RS-232/422/485 ports (1.5KV isolated)

Number of HDMI ports

Number of USB 3.2 ports - (Type - A)

Number of USB 3.2 ports - (Type - C)

VESA support

100 x 100, 75 x 75 mm

Speakers

Speaker output

Weight

6.29 kg

Color

Blue

Colours

16.7 millions (6-bits + A-FRC)

Standard

Medical CE, FCC (IEC 60601-1-2, 4th Edition) / EN 60601-1 Compliance / UL 60601-1

Storage temperature

0°C ~ 50°C

Temperature of use

0°C ~ +35°C

Guarantee

3 years

Battery standard

EN 60601

Mask pitch

247.5 x 247.5 mm

Brightness

250 cd/m2

Contrast

1000 : 1

Projected Capacitive

Uses USB interface - 10 point multi-touch

Graphics controller

Intel® Iris® Xe Graphics

Backward tilt angle (vertical)

178°

Forward tilt angle (horizontal)

178°

Microphone input

Fans

Fanless

Front frame

IP65

Rear frame

IP54

Bluetooth

Bluetooth 5.3 / 5.1

Type of power supply

Internal power supply

Medical panel PC POC621 with internal power supply - CORE i5 - without RAM and SSD

Waterproof, rugged, touch-sensitive, and disinfectable, the POC621 is designed for demanding medical environments such as operating rooms. Equipped with an 11th generation processor and an NVME SSD up to 7 times faster, it provides quick and comfortable access to applications and radiological images.

The integrated power supply in the panel PC simplifies installation and reduces clutter, while the fanless design minimizes noise and maintenance. Resistant to dust and liquid splashes (IP65 front and IP54 rear), this touch screen can be used with gloves, making it ideal for sterile environments.

Image zoom and rotation capabilities allow for better detail visualization. Its flat, seamless design enables quick and thorough disinfection, reducing the risk of contamination.

Compliant with the EN60601-1-2 standard, the POC621 is safe and reliable for medical environments. It features numerous connectivity options for compatibility with various accessories.

The Full HD resolution screen (1920 x 1080 pixels) ensures optimal image clarity. Powered by an 11th generation Intel Core i5 processor, the POC621 delivers robust processing power for demanding applications, while the NVME SSD ensures exceptional performance for data storage and access.
