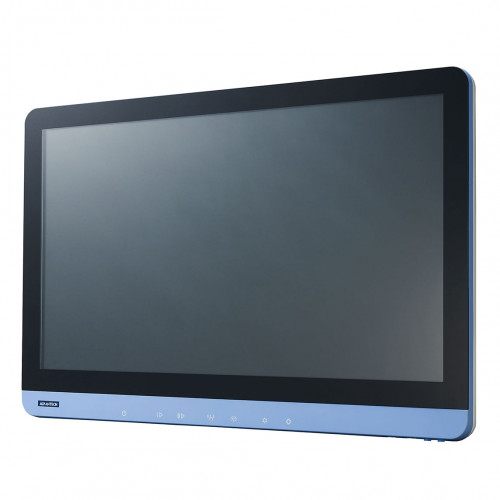

Medical Panel PC POC W243 IP54 with external power supply - COREI7 - DDR4 4GO - SSD128

0 / Write a review

PANEL PC MEDICALISE POC W243 IP54 - COREI7 - DDR4 4GO - SSD128 - CABLE 1702002605

  • Designed without a fan, for thermal and acoustic comfort
  • Protected from dust and liquid splashes, they meet the IP54 standard
  • The touch panel, usable with gloves and both hands simultaneously, allows you to zoom in on the image and rotate it easily
  • Made of glass, the touch panel does not darken the screen for optimum comfort
  • A rich and protected connectivity
  • Warranty: 3 years with extension to 4 or 5 years
Product Code: COREI7 - DDR4 4GO - SSD128 - CABLE 1702002605
Brand Advantech
On command - shipping 5 weeks or more
4,346.46€
Icl Tax: 5,215.76€
Qty

  • Need help

    01 45 10 77 90
  • Buy this product online or ask us for a quote!
  • The delivery times indicated on the site are in working days
  • The prices indicated on the site are exclusive of tax
  • Free shipping from 500€ HT of order
Reference 72.POC.W243.A11D.ACE
Indicative shipping time On command - shipping 5 weeks or more
Outer dimensions 583 x 386 x 69 mm
Screen size 23.8’’ Wide TFT color LCD 16:9
Resolution 1920 x 1080
CPU Intel® Core™ i7 6600U (4M cache, up to 3.40GHz)
Memory type DDR4-1666/2133 SODIMM (up to 32GB)
Operating system Windows 7 / Windows 8.1 Industry Pro / Windows 10 IoT
Storage system 2.5’’ SATA HDD/128 GB SSD, mini-PCle mSATA
Expansion slot 2 x Mini PCIe (1 full-size/1 half-size) + 1 x PCIe (x4)
Number of USB 2.0 ports 4
Number of USB 3.0 ports 1
Number of RS-232/422/485 ports (1.5KV isolated) 2
Number of RJ45 ports 1
Number of HDMI ports 1
Number of Displayports 1
Speakers 2
Speaker output 1
Wifi Dual-band (2.4/5GHz) 802.11 a/b/g/n/ac 2Tx/2Rx Wifi
RFID 13.56 MHz (ISO-15693 & ISO-14443A & ISO-14443B)
Weight 7,95 kg
Colours 16.7 millions (RGB 8 bits)
Guarantee 3 years
Battery standard CE, FCC Class B, UL60601-1, EN60601-1
Battery life 1 to 2 hours
Mask pitch 247.5 x 247.5 mm
Brightness 250 cd/m2
Contrast 1000 : 1
Graphics controller Intel HD Graphics 520/510
Microphone input 1
Fans Fanless
Front frame IP65
Rear frame IP54
Bluetooth Bluetooth 4.1
Type of power supply External power supply
Packing 1
